Discription:

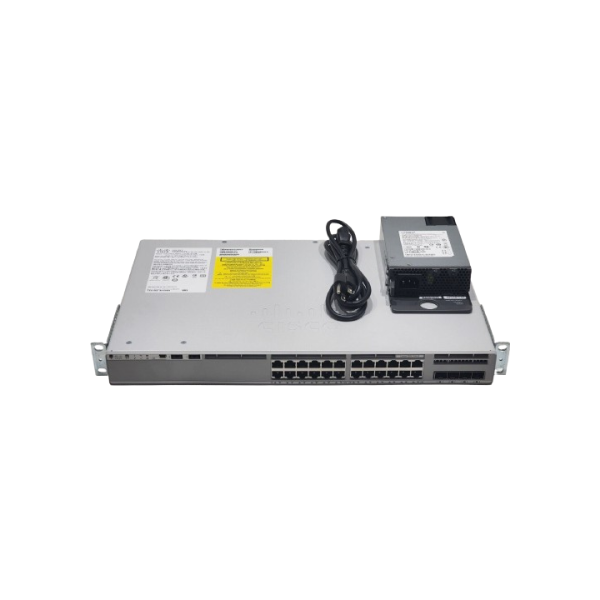

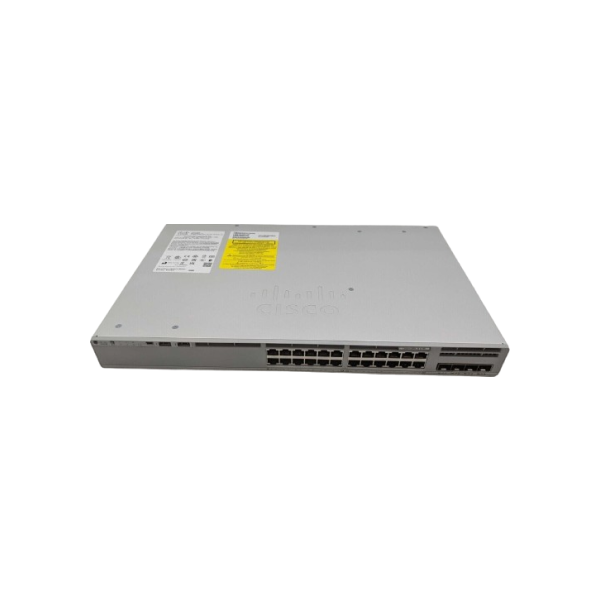

Part Number: C9200L-24T-4G-EThe Cisco C9200L-24T-4G-E, a member of the Catalyst 9200L Series, is a versatile network switch designed to deliver reliable and high-performance connectivity for modern enterprises. With 24 data ports and 4 uplink ports, it offers seamless data transmission. Its 1G uplink ports ensure swift network connectivity, and the Network Essentials license provides essential layer 2 features. The switch supports a stacking capacity of 160 Gbps through StackWise technology, enhancing scalability. Its compact design, measuring 1.73 x 17.5 x 11.3 inches, allows for easy integration into various network environments. This switch is an efficient solution for businesses seeking dependable networking solutions.
Specifications
- Part Number: C9200L-24T-4G-E
- Product Description: Catalyst 9200L 24-port Data 4x1G uplink Switch, with Network Essentials software
- Total 10/100/1000 or Multigigabit copper ports: 24 ports data
- Default AC power supply: PWR-C5-125WAC
- Available PoE Power: Not applicable
- Cisco StackWise-480: Not applicable
- Cisco StackPower: Not applicable
- Default power supply: PWR-C5-125WAC/2
- Switching capacity: 56 Gbps
- Stacking bandwidth: 80 Gbps
- 16,000 MAC addresses in total.
- IPv4 route total (ARP plus learned routes): 11,000 (8,000 direct routes and 3,000 indirect routes).
- 3,000 IPv4 network entries
- 1,500 IPv6 network entries
- The scale of multiple routing: 1,000
- 1,000 items on the QoS scale
- ACL scale entries: 1,500
- Packet buffer per SKU: 6 MB buffer for 24-port Gigabit Ethernet model
- FNF entries: 16,000 flows on a 24-port Gigabit Ethernet model
- DRAM: 2 GB
- Flash: 4 GB
- VLAN IDs: 10241
- The total number of Switched Virtual Interfaces (SVIs) is 512.
- 9198 bytes for huge frames
- Total routed ports per 9300 Series stack: Not applicable
- Wireless bandwidth per switch: Not applicable
- Forwarding rate: 83.33 Mpps
- Dimensions (H x W x D): 4.4 x 44.5 x 28.8 cm (or 1.73 x 17.5 x 11.3 in)
